Our Products

ICC manufactures a wide range of commutators and slip rings, specializing in custom and small-volume industrial products. We build, repair, and re-engineer units from four inches to over ten feet in diameter, optimizing designs for maximum mechanical stability and electrical efficiency.

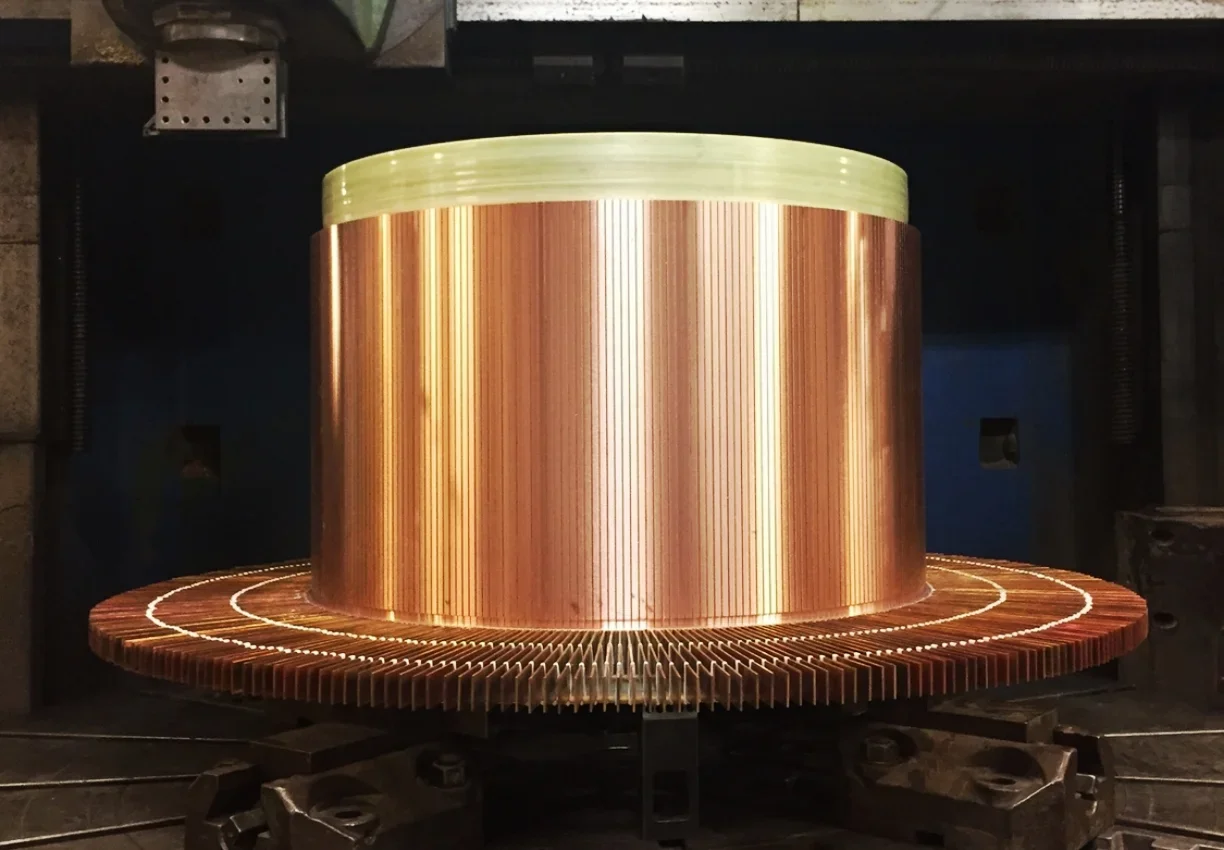

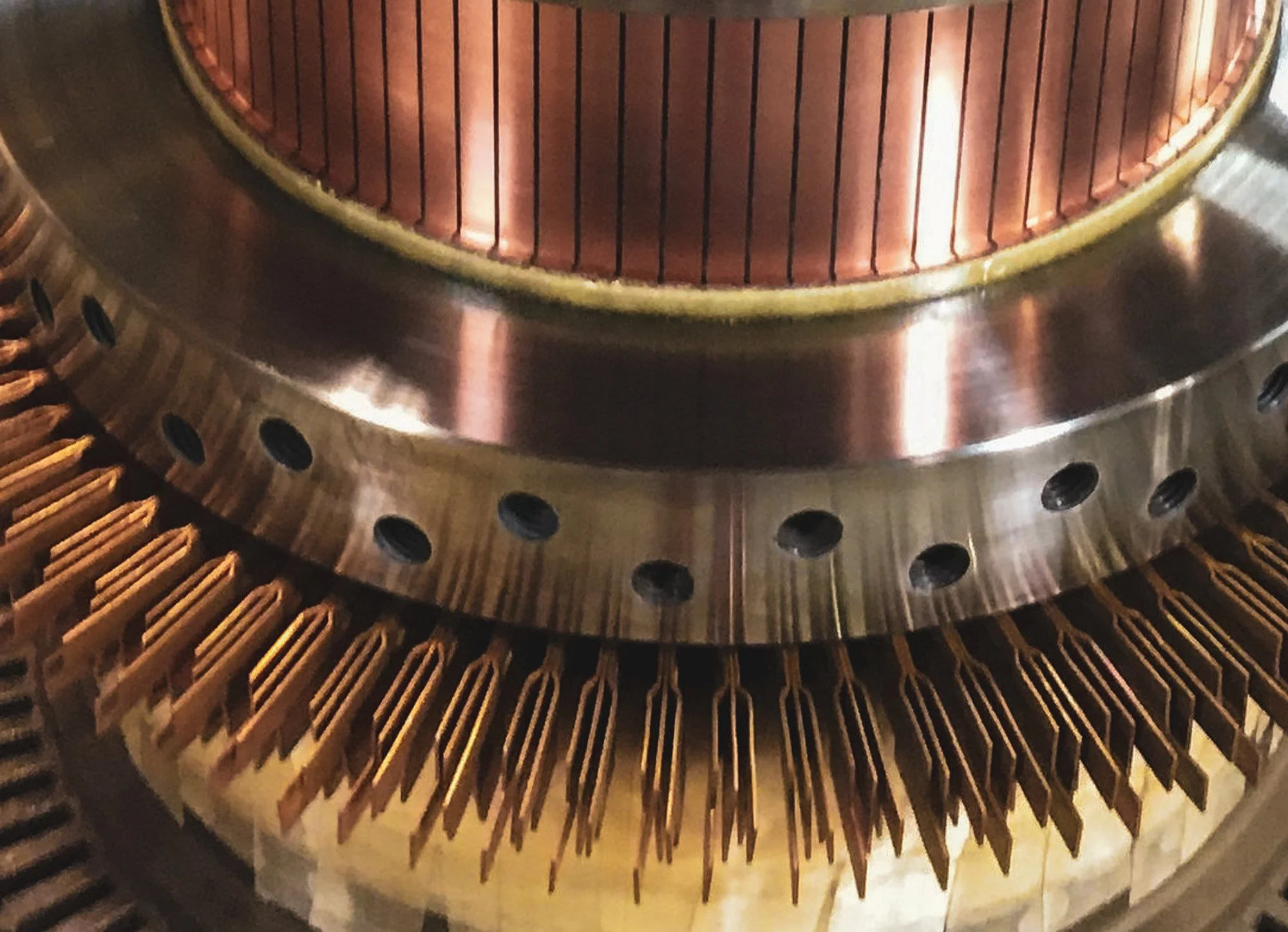

V-Ring Commutators

V-ring commutators are available in sizes ranging from four inches to several feet in diameter. Designed for versatility, they accommodate various riser styles to suit different coil configurations. Their copper and mica segment pack is retained internally using a dovetail cut with 3° and 30° angles, which interlock with steel caps at each end. Insulated by mica V-rings, these caps exert pressure on the segment pack, securing the copper bars in place.

Proper seating of the steel caps is essential for stable operation, requiring sufficient curing to account for the different expansion rates of steel and copper. Smaller V-ring commutators (4”–12”) are typically secured with a nut at the outboard end, while larger units use bolts for added stability.

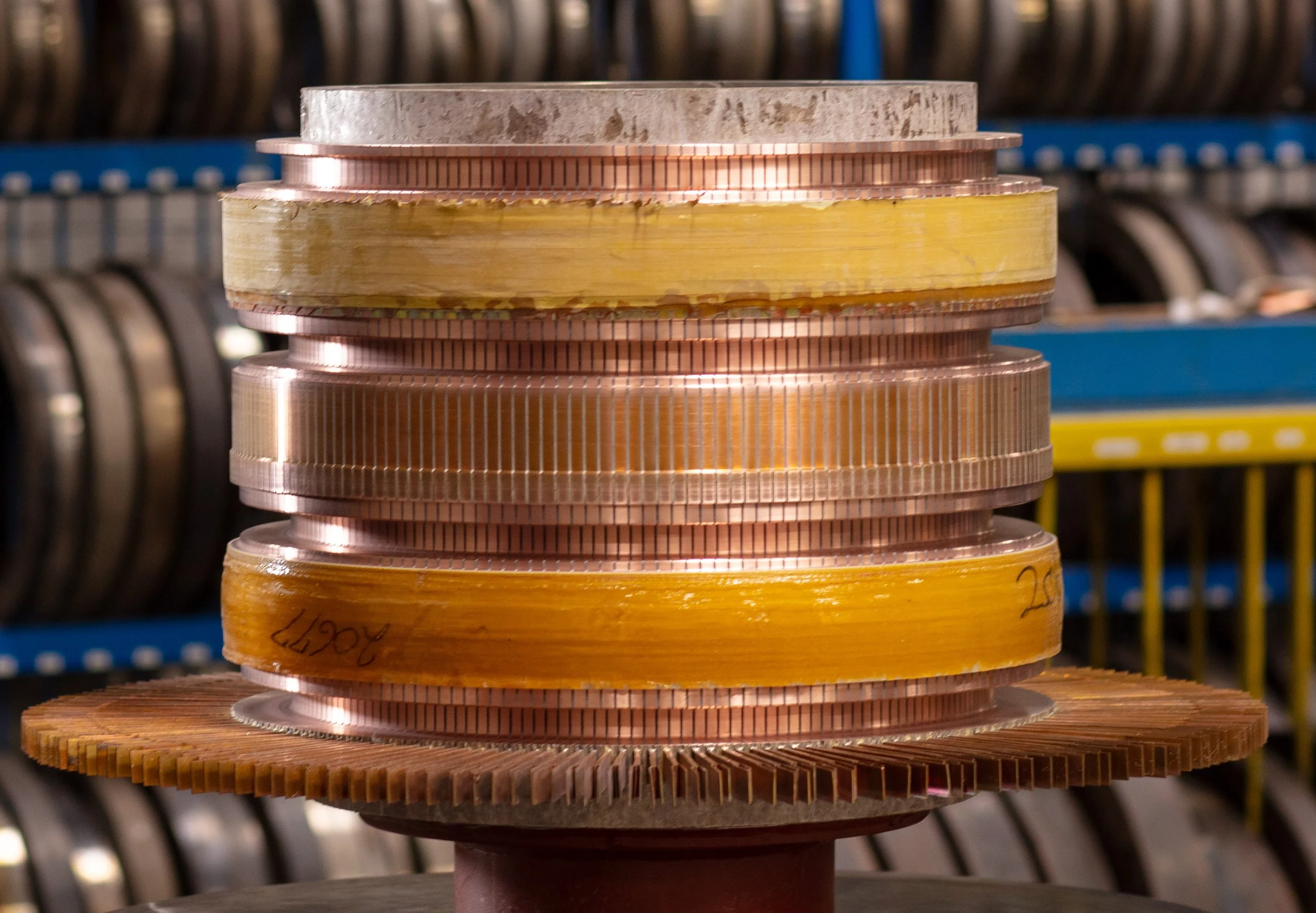

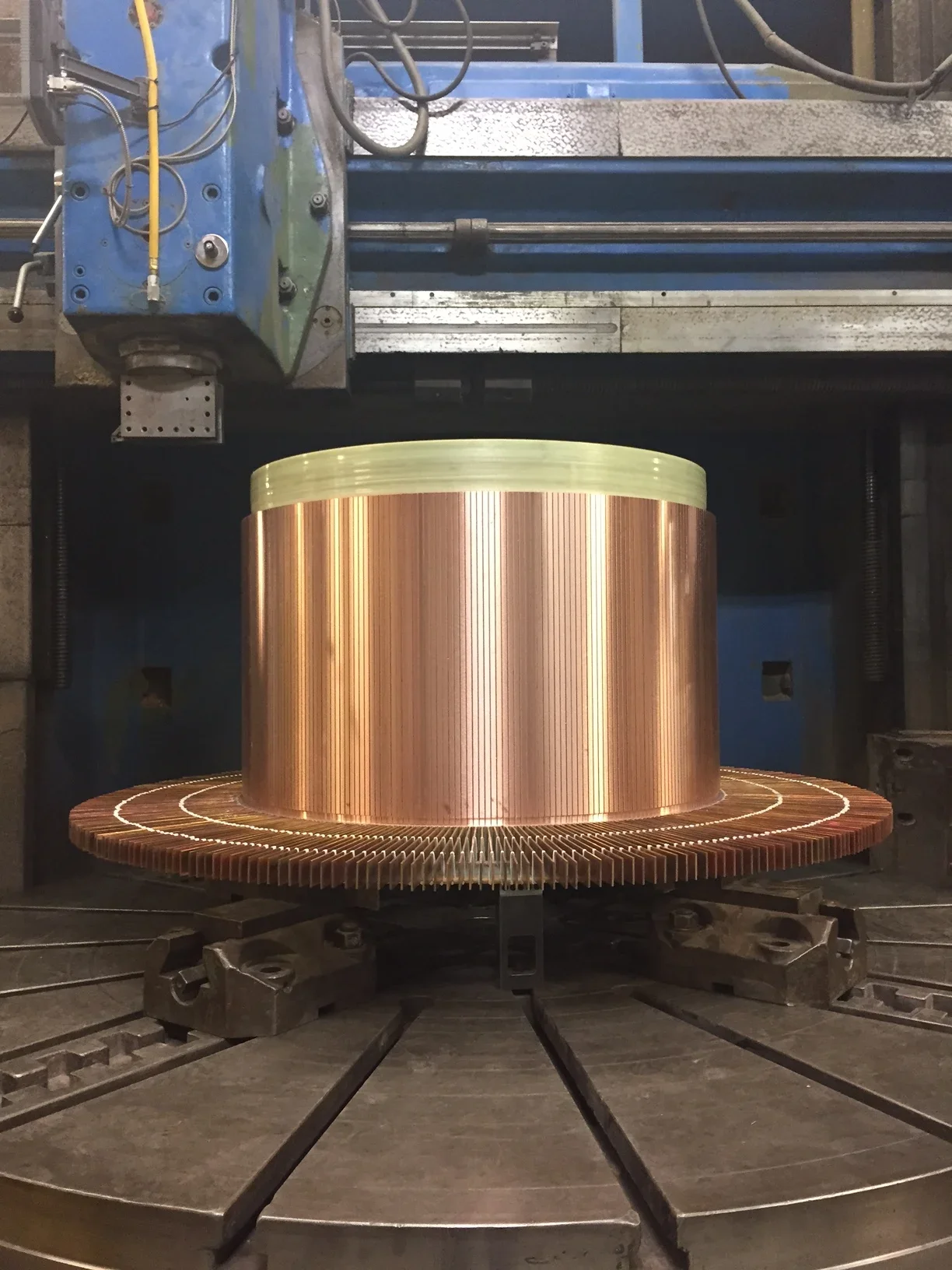

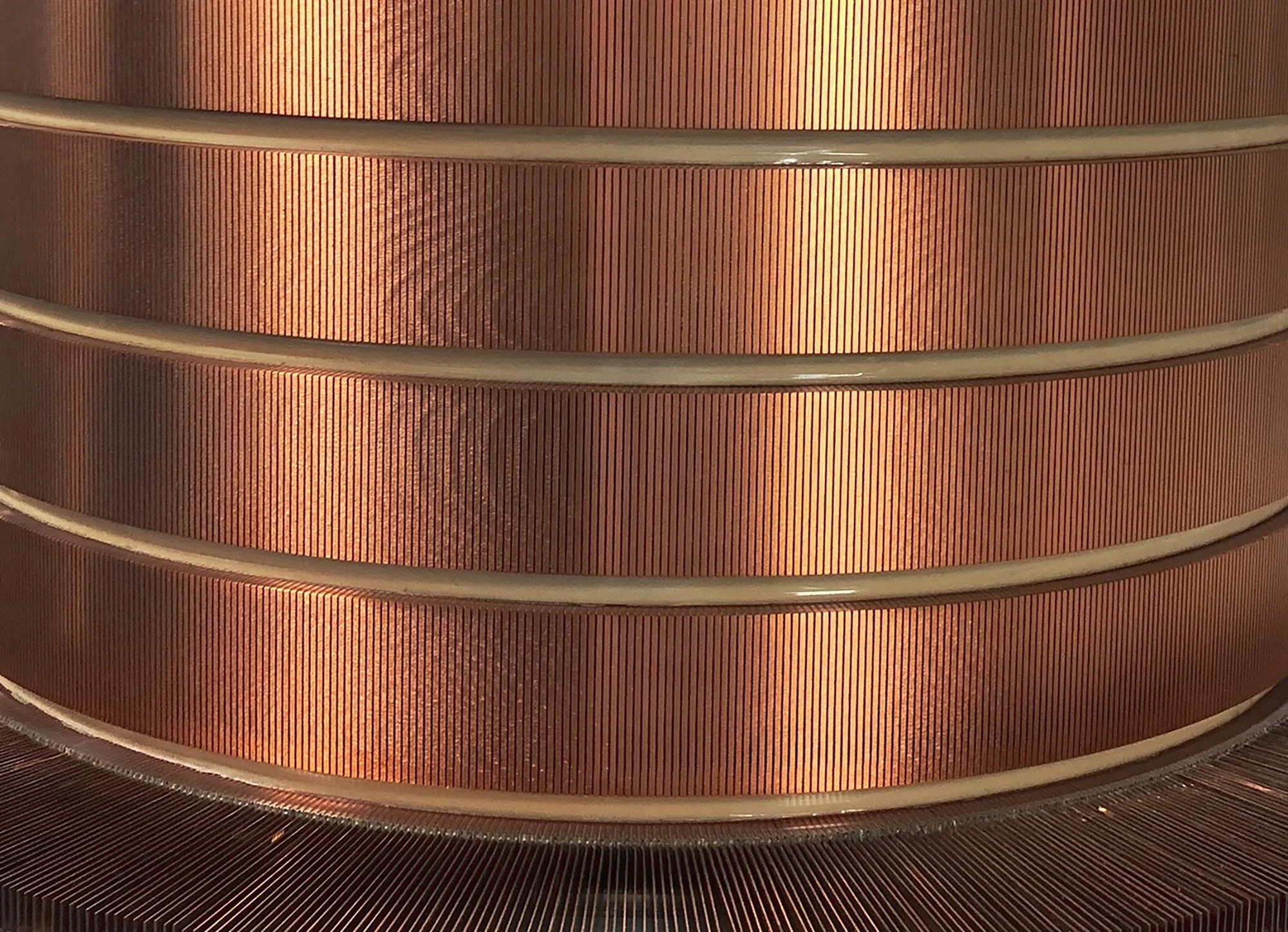

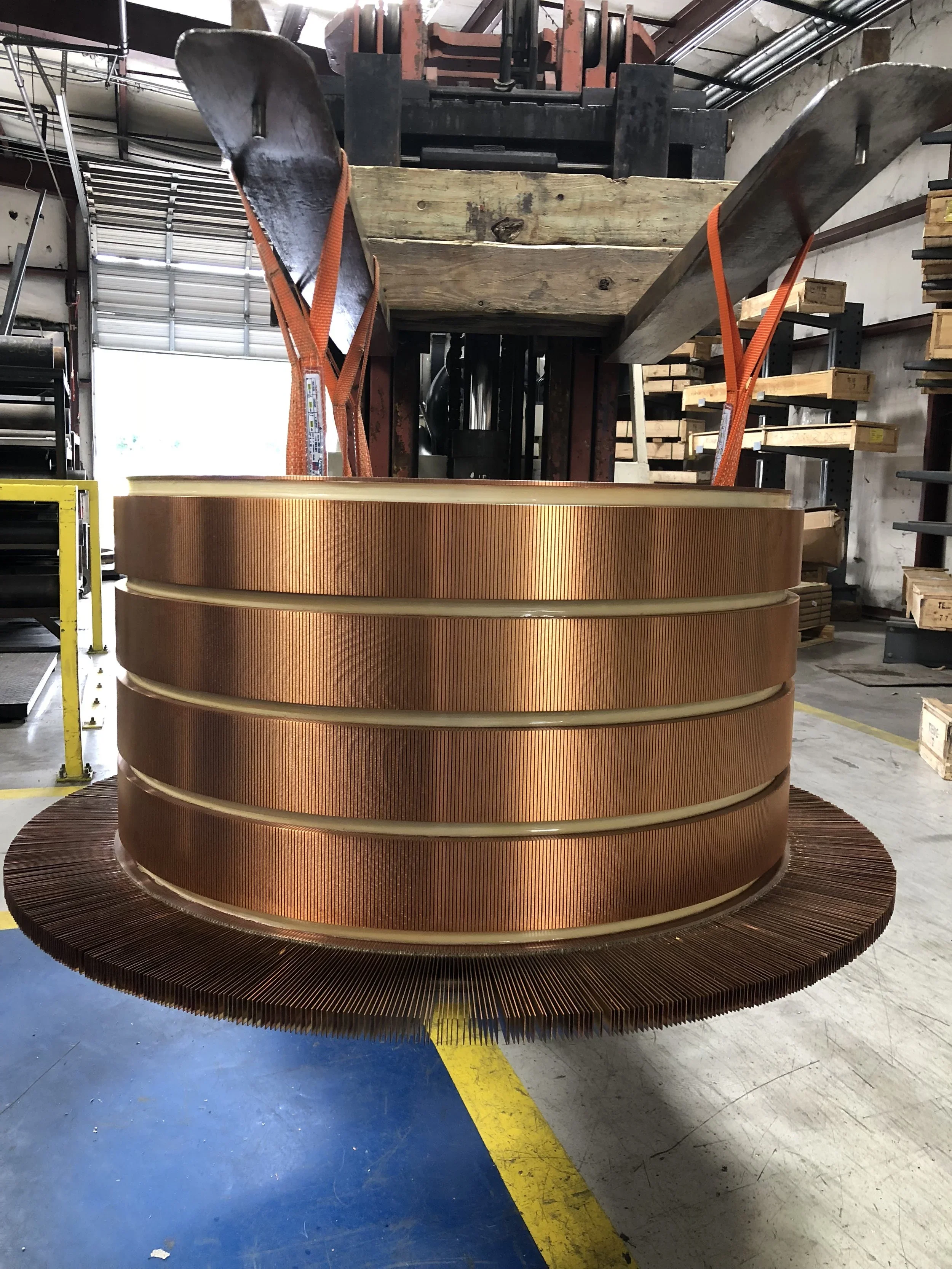

Glassband Commutators

Our glassband commutators are built for durability and performance. Backed by decades of experience, our commutators ensure reliability and durability in even the most demanding environments.

Each unit is engineered with a precise interference fit to a mica-wrapped steel hub for long-term structural integrity. Due to the delicate machining required, glassband commutators cannot be reinsulated, but rebanding is a viable repair option – one ICC is happy to support. To maximize strength, bands are applied in multiple stages at 600 psi, significantly exceeding safety requirements. For added protection, ICC recommends sealing with Viton® to prevent contamination and extend service life.

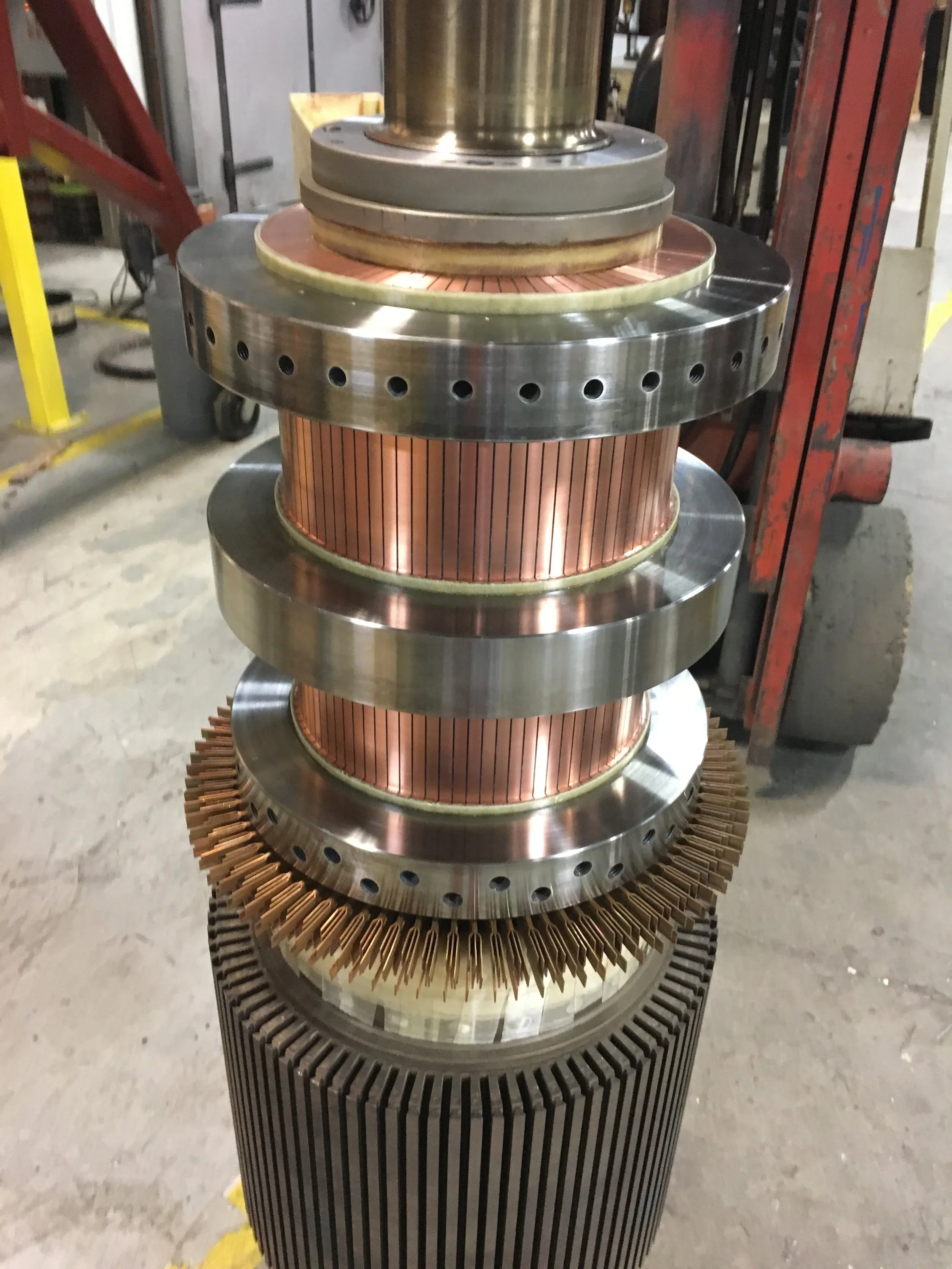

Steel Shrink Ring Commutators

Steel Shrink Ring commutators, also known as Exciter and Dynamometer commutators, are highly specialized, and are designed to withstand rapid acceleration and extremely high RPM. Unlike V-ring commutators, they rely on forged steel rings to retain the copper and mica segment pack, requiring precise thermal cycling and measurement to ensure a secure fit. Some designs also feature a tapered segment pack I.D. or direct installation onto the armature shaft, enhancing stability and performance under extreme operating conditions.

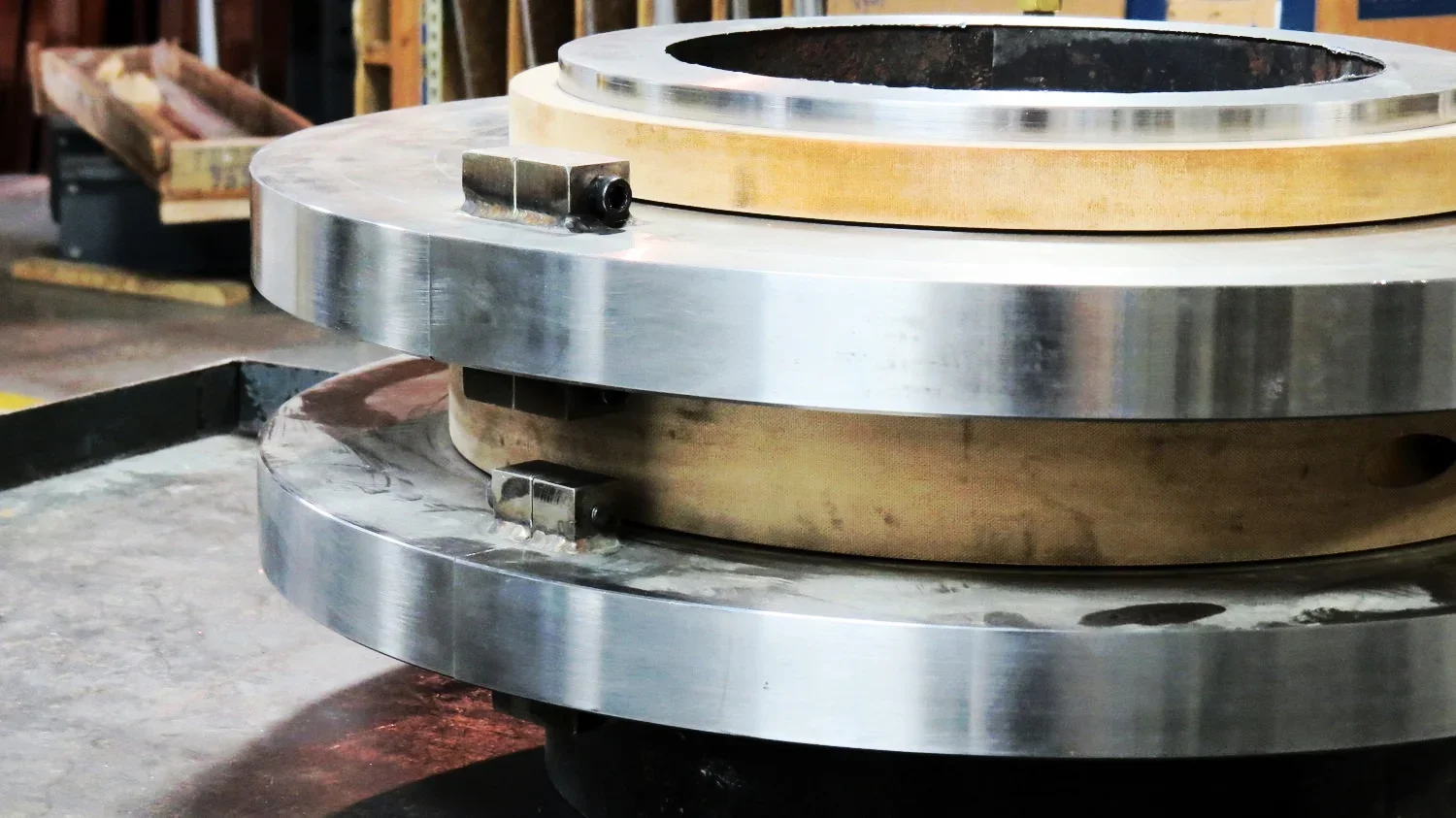

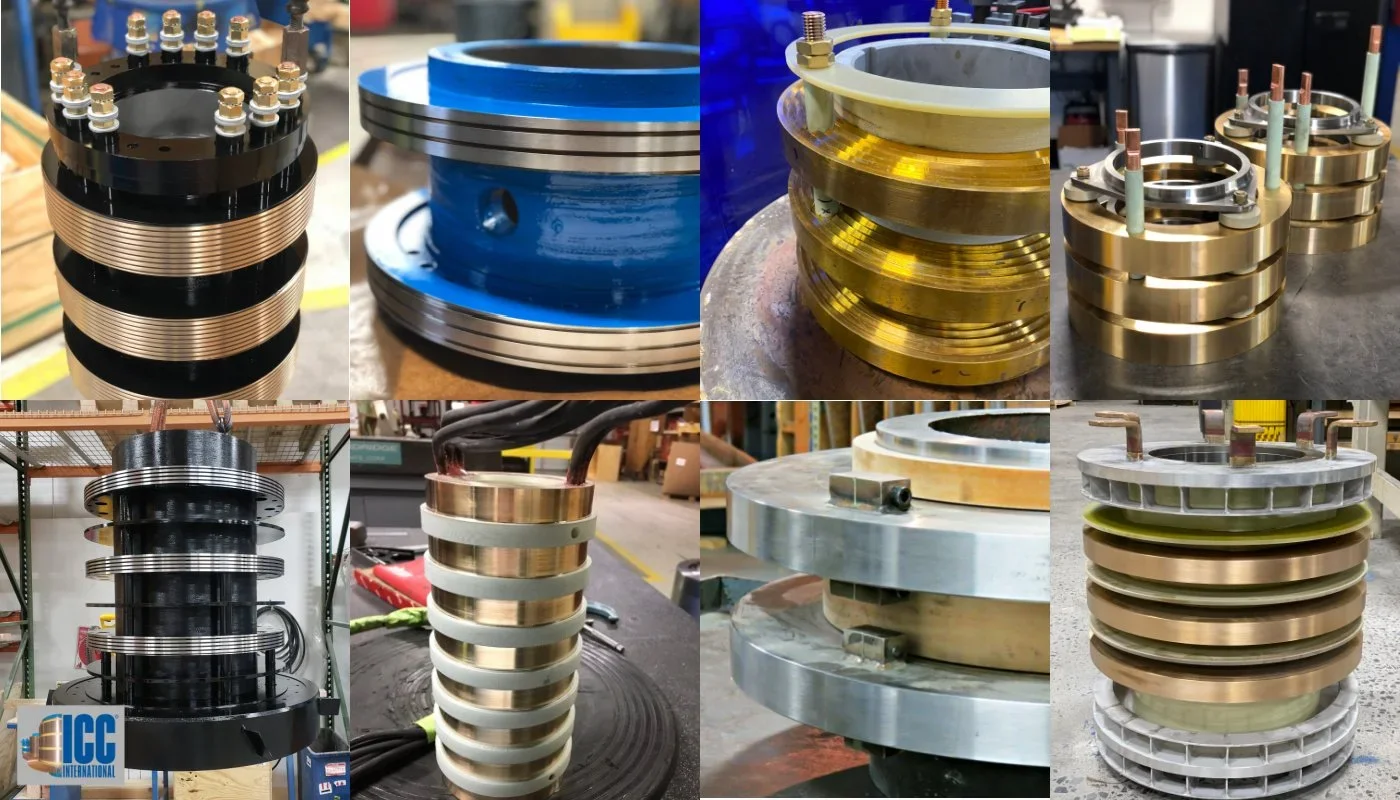

Slip Rings

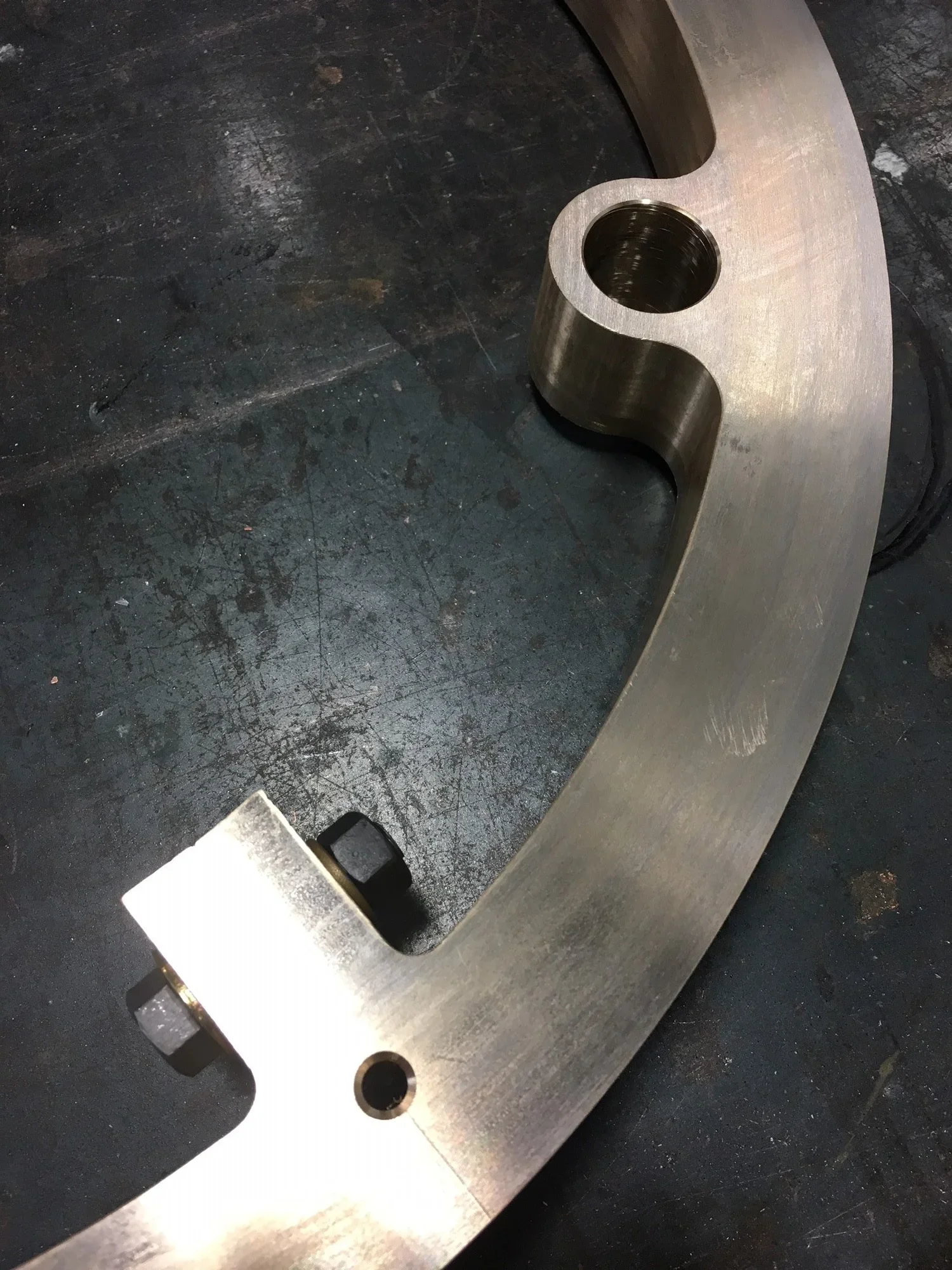

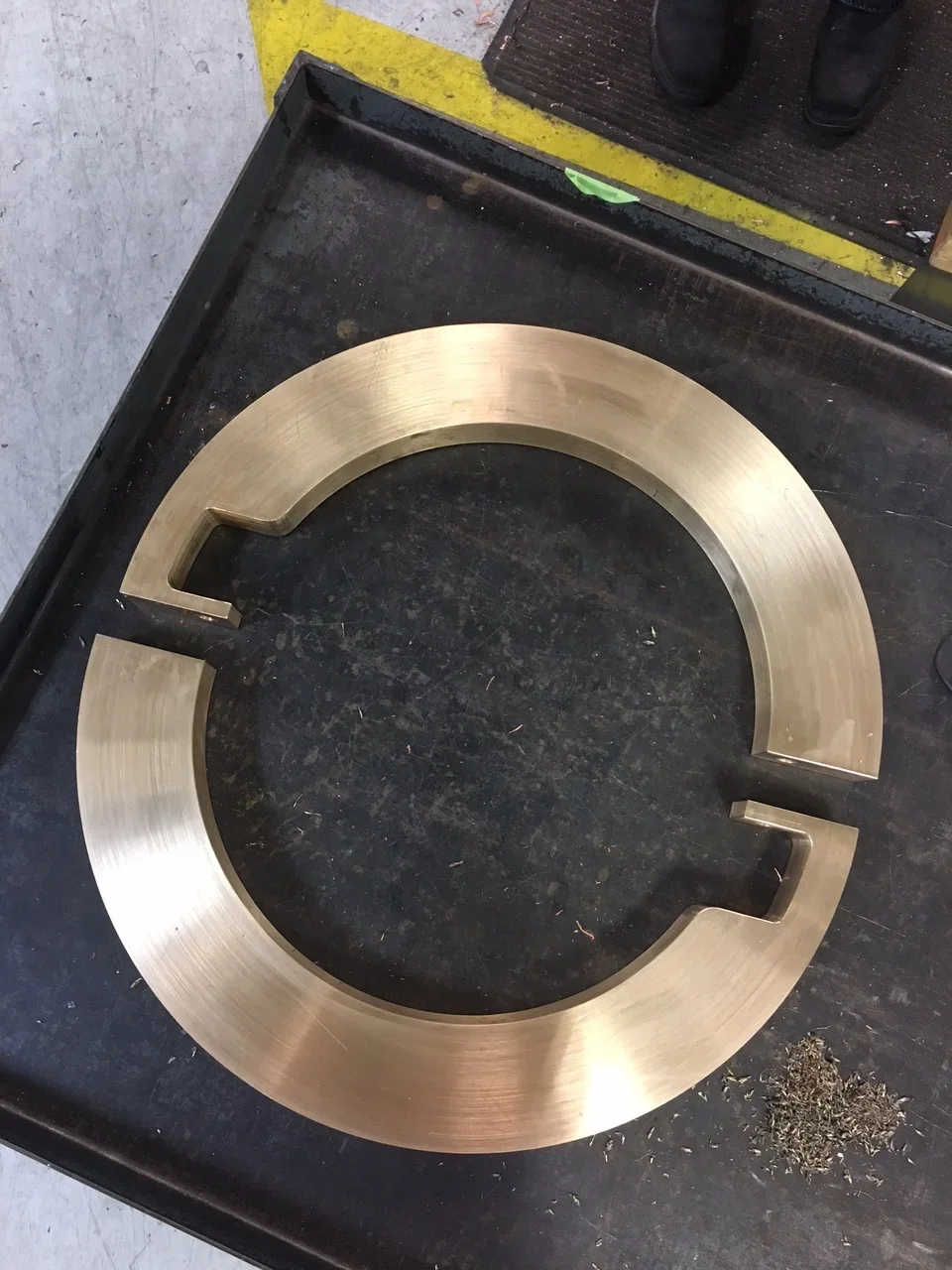

ICC manufactures and refills slip rings, offering designs tailored to specific applications. Ranging from 4-18” in diameter with up to 17+ rings, these units vary from simple round lead designs to complex molded or split-ring configurations. Material selection, such as naval brass.

Additional Services

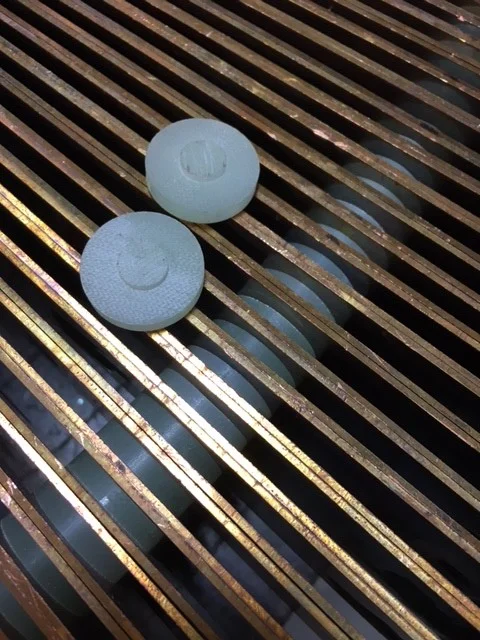

ICC International’s automated equipment and skilled machinists can handle specialized tasks like tinned risers, pre-undercutting, lashing, and G-10 buttons. Have a specialized need? Let us know, and we’ll include it in your next quote.

Why ICC International?

  • OUR STANDARD IS EXCELLENCE.
    NO EXCEPTIONS.

    Quality is at the core of everything we do at ICC. With today's increasing demands on large industrial DC motors, every component, including commutators and collector rings, must meet the highest standards. Our team is dedicated to continuous improvement in processes, materials, and products to ensure best-in-class reliability and performance for industrial applications worldwide.

     Every ICC employee upholds our commitment to excellence, integrity, and customer satisfaction. We strive to provide high-quality solutions, reliable deliveries, and innovative improvements to support our customers

  • HAVE A NEED FOR SPEED?

    You have a business to run and we’re here to help. That’s why ICC International offers four production speeds for your convenience.

    Royal Response Service
    We design a schedule tailored to your needs – just tell us when to expect your commutator, and we’ll commit to a guaranteed ship time. Your order gets priority across all departments, with 24/7 support and real-time updates, so you’re never left wondering.

    Red Alert
    Since 1986, ICC's Red Alert Service has set the standard for emergency commutator repairs in North America. We offer a 96-hour or less turnaround on most jobs, with 24/7 scheduling to ensure fast shipping – even for complex projects. We never cut corners, guaranteeing top-quality results every time.

    Rush
    Need a faster delivery without the high premiums? We offer flexible scheduling and cost-effective options to fit every organization’s unique needs.

    Straight Time
    Refill or replace your commutator without overtime charges. Standard delivery is 10 to 12 days, including weekends and holidays, with most orders shipping early.

  • HAVE A COMPLEX CHALLENGE?
WE OFFER CUSTOM SOLUTIONS

    Choosing the right manufacturer is more important than ever – and the right materials are essential for performance and durability. ICC uses high-quality materials, including silver-bearing Tough Pitch Electrolytic Copper for strength and heat resistance, alkyd vinyl Segment Mica for insulation, molding mica V-rings for stability, and steel for hubs and caps. Glass tape is used for reinforcement in V-ring commutators and band grooves.

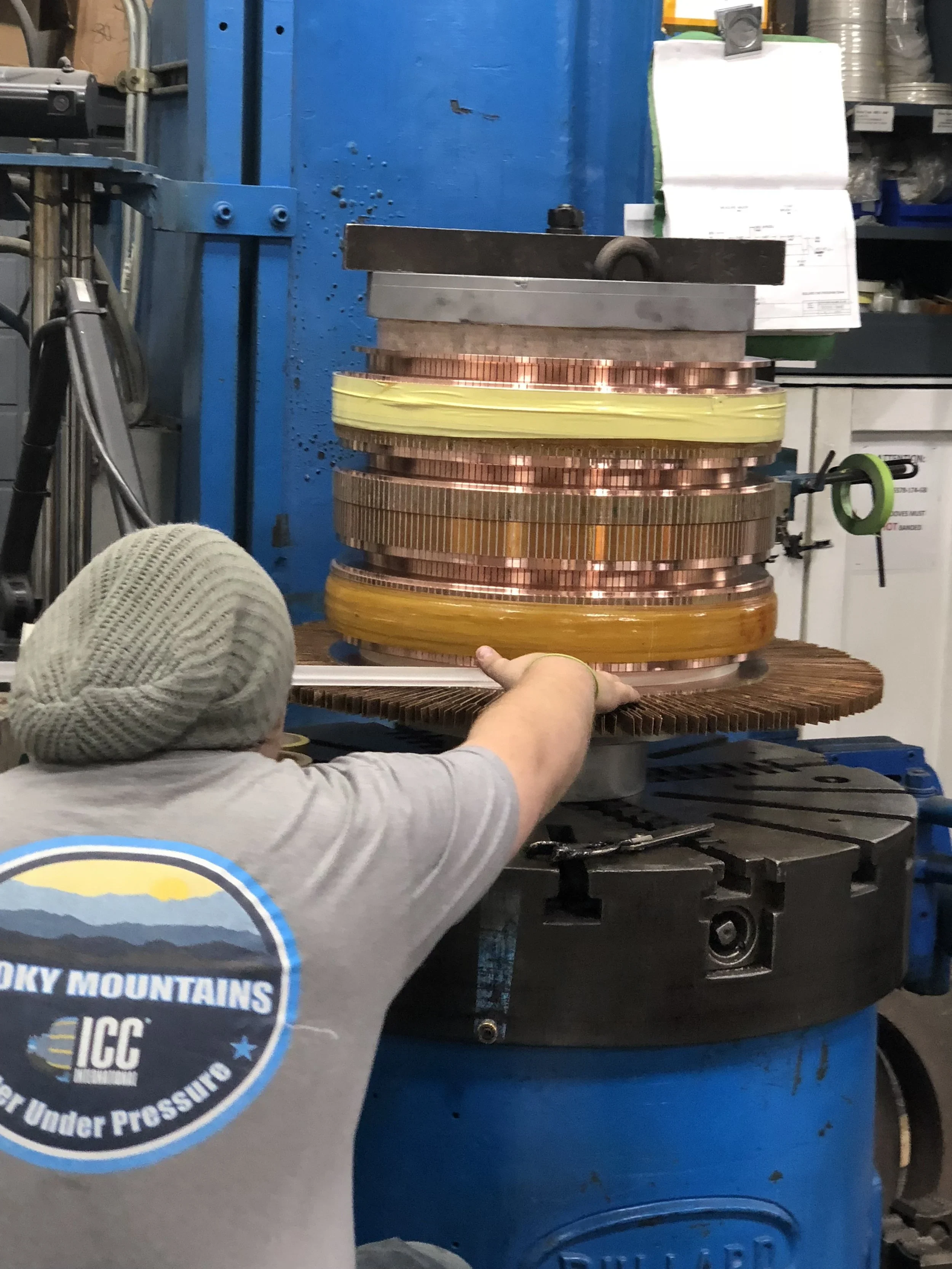

    The manufacturing process begins with precisely sizing and stacking copper bars with segment mica before compressing them under high tonnage for stability. In the glassband process, the steel core is wrapped with mica, machined, and banded under at least 600 pounds of tension. The V-ring process involves machining dovetail angles, assembling with steel caps, and using controlled heat, torque, and tonnage for structural integrity. Finally, the commutator is machined to its final diameter, risers are finished, and each unit undergoes rigorous hi-pot testing to ensure quality and reliability.

    SHIPPING
    With more than 40 years of experience, we work with your preferred carrier to ensure timely, accurate deliveries and handle all customs documentation for a seamless process. Whether you’re shipping across the world or across state lines, we take every ship date seriously and are committed to on-time delivery.

    In fact, we’re so confident in our process and efficiency, that each one of our products comes with a shipping guarantee. If we miss a promised ship date you get 10% off your invoice.
